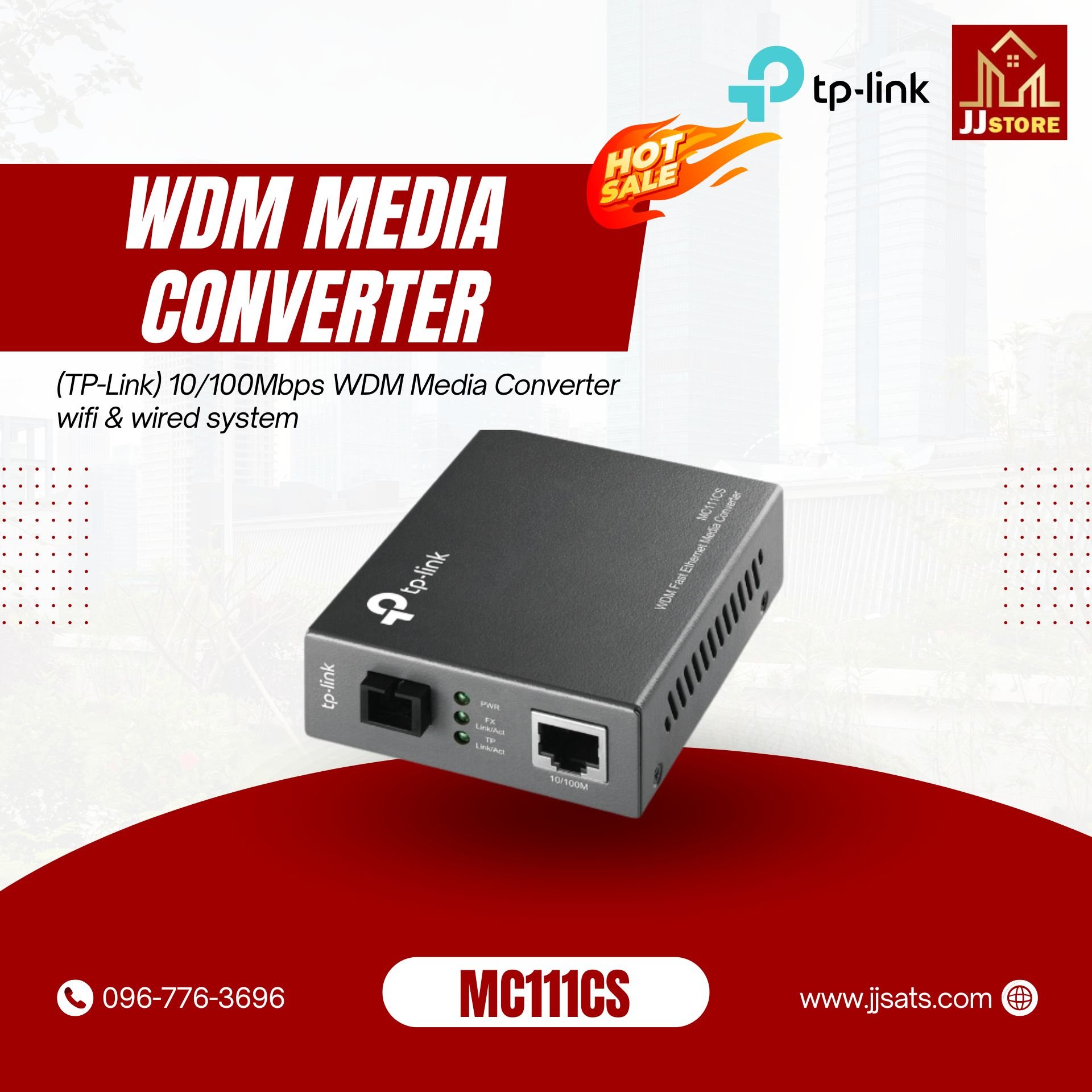

MC111CS (TP-Link) 10/100Mbps WDM Media Converter wifi & wired system

• 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
  PORT: 1× 100Mbps SC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX)
  SPEC: Full-duplex, Tx:1550 nm, Rx:1310 nm, Up to 20 km, Chassis TL-MC1400 Rack-mountable


• Complies with 802.3u 10/100Base-TX, 100Base-FX standards


• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode


• Adopts WDM technology, transmitting and receiving data on one single fiber


• Extends fiber distance up to 20km

MEDIA CONVERTER & MODULE
Standards and Protocols : IEEE 802.3i, IEEE 802.3u
Basic Function : Adopts WDM technology
Half/Full-Duplex transfer mode for FX port : Extends fiber distance up to 20km
Ports : 1 100M SC/UPC port
1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length : 1550nm Tx/1310nm Rx
WDM TX : 1550nm
WDM RX : 1310nm
Network Media 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T : UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX : Single-mode Fiber
LED Indicators : PWR, Link/Act
Dimensions (W*D*H) : 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply : External Power Adapter
Max Power Consumption : 2.49W
Safety & Emission : FCC, CE, RoHS

Package Contents
• Media Converter MC111CS
• Power Adapter
• Installation Guide

Environment
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
